MOVAX REFERENCES

MOVAX piling equipment is the optimum solution for a wide range of piling requirements and a variety of soil and site conditions ranging from the largest construction sites to landscaping jobs – also in the most demanding conditions when a high-degree of precision is required, in sensitive environments and when limited space or access is available.

Today there are more than 2500 MOVAX units delivered to more than 65 countries, on six continents, world wide.

APPLICATION EXPERTISE

Throughout the years MOVAX has gained a deep understanding and know-how of varying site and soil conditions ranging from the freezing cold of the arctic to the heat of the tropics - and of a wide range of applications from Rail, Road and Civil to Waterways & Piers, Utilities and Environmental & Energy.

Flood protection in Saalfelden, Austria

Austria

Saalfelden

The Urslau River is flooding every year between the mountains around town of Saalfelden and causes considerable damages to nearby buildings. Flooding is at worst in the springtime when the snow melts. Construction of protective structures began in 2012 and due to cost (around 40 Million Euros) estimated duration of the project is 15 years. In order to build concrete protection structures in dry condition the sheet pile walls needs to be built along entire river course in the city of Saalfelden. Sheet pile lengths vary with maximum length 12 metres.

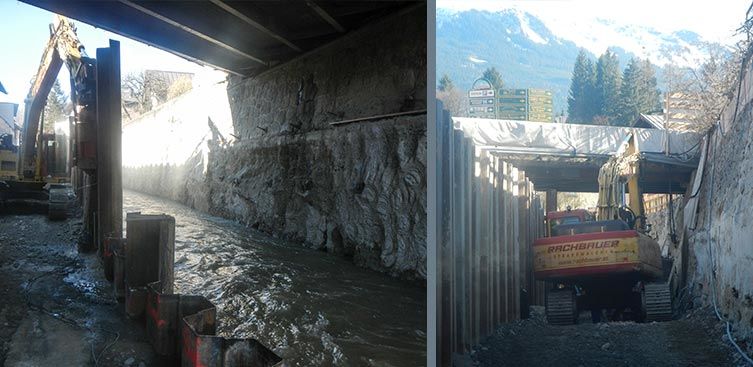

Piling specialist Rachbauer utilizes Movax Side-Grip Piler SPH-80 on Komatsu carrier. The Side-Grip is proved to be especially useful on this project were parts of the sheet piling was installed under the bridges. On those locations the piles are driven in 5 metres splices and extended by welding until required depth was achieved. In the picture: Movax SPH-80 with the carrier unit in construction pit along Urslau River.
