MOVAX REFERENCES

MOVAX piling equipment is the optimum solution for a wide range of piling requirements and a variety of soil and site conditions ranging from the largest construction sites to landscaping jobs – also in the most demanding conditions when a high-degree of precision is required, in sensitive environments and when limited space or access is available.

Today there are more than 2500 MOVAX units delivered to more than 65 countries, on six continents, world wide.

APPLICATION EXPERTISE

Throughout the years MOVAX has gained a deep understanding and know-how of varying site and soil conditions ranging from the freezing cold of the arctic to the heat of the tropics - and of a wide range of applications from Rail, Road and Civil to Waterways & Piers, Utilities and Environmental & Energy.

Building of electrically powered water-ski track

Poland

Szelment

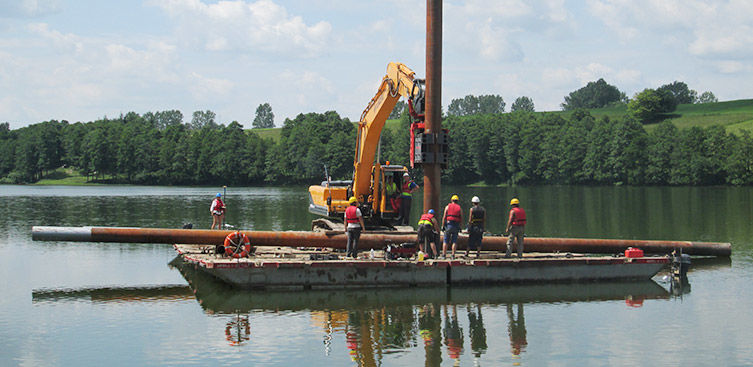

Polish contractor HYDROBUD KIELCZYK was part of a project building electrically powered water-ski track to SZELMENT Lake in north-eastern Poland. Work required installation of over 70 pcs of 508 mm tubes as pedestals for pulling rope towers and pierces. Installation was carried out with Movax SG-60 vibratory hammer installed on Hyundai 290 excavator.

Slopes nearby were protected with 12 meters long Gu16N profiles, driven also by Movax SG-60. Movax unit was equipped with modular jaws in order to provide smooth and fast tube and sheet-pile driving.

The track is the second longest in Poland with total length of 1.000 meters.
