MULTI-TOOL PILING LEADERS

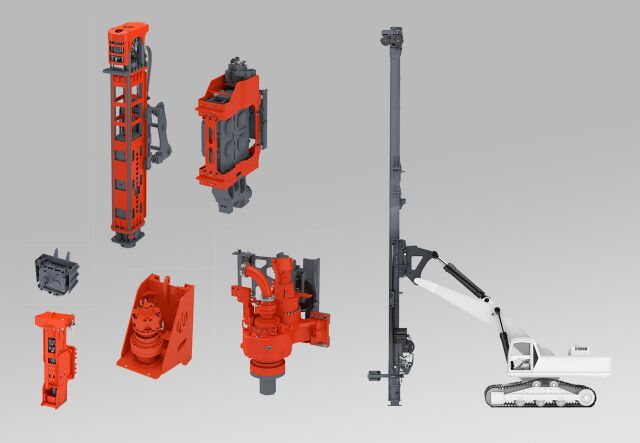

MOVAX Multi-tool piling leaders are customised solutions available for a wide range of site and soil conditions, and for different types of piles and piling technologies - including driven, bored and drilled – with tooling alternatives including; vibratory pile drivers, hydraulic, double-acting impact hammers/hydraulic hammers and rotary drives for pre-augering, CFA and DTH.

MOVAX Multi-tool piling leaders are based on a modular concept, but always customised based on customer-specific requirements.

FEATURES

Utilizing the hydraulic power and lifting capacity of the excavator. Designed to work on any and all excavators by using and commanding the standard auxiliary hydraulics and/or by connecting to the electronic control of the excavator while maintaining all the original functionality of the excavator. Available for excavators ranging from 8 to 50 ton.

MOVAX EXCAVATOR REQUIREMENTS

Available with a wide range of tooling for ei padifferent piling and foundation applications ranging from driven piles to CFA and DTH. Depending on MPL-model tooling alternatives including; vibratory pile drivers, hydraulic, double-acting impact hammers/hydraulic hammers and rotary drives for pre-augering, CFA and DTH.

MPL MODELS

MOUNTING OPTIONS

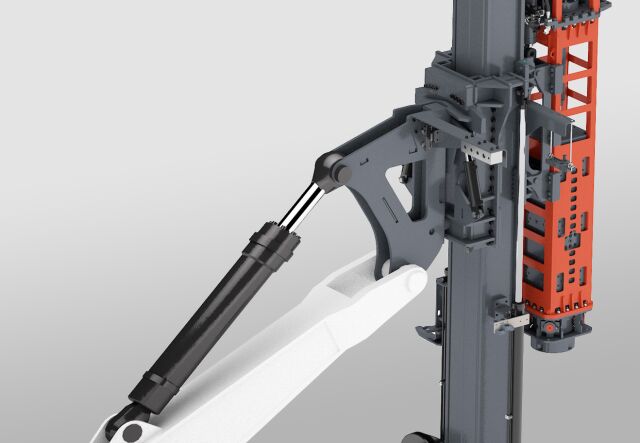

The MOVAX Multi-tool leaders are available stick-, boom- and chassis-mounted based on the MPL-model and the size of excavator.

NOTE! the selection and suitability of a specific excavator must always be checked by MOVAX Oy

Versatility based on the MOVAX Modular System™ enabling the use of the same MOVAX Multi-tool piling leader with a wide range of easily changed tooling for different piling technologies - driven, bored and drilled.  Available with optional service winches, tooling specific accessories such as auger star cleaner for CFA, pile and auger guides and tilt & rotation device.

MMS™

Superior driving, boring and drilling capabilities due to the state-of-the art MOVAX Control System which leads to the highest possible efficieny, precision and accuracy. The MOVAX Multi-tool leader(s) and the associated tooling are all controlled with the same control system: mControl+ PRO.

mControl+ PRO

Available with the MOVAX MIMS Information Managament System: mFleetManagement for monitoring MOVAX Multi-tool piling leader and tooling operation, performance and condition; and mLogbook for monitoring and reporting the piling works; available for driven and bored piling technologies.

MIMS™

MOVAX MULTI-TOOL PILING LEADERS



TECHNICAL DATA

MOVAX Multi-tool piling leaders and its associated tooling are designed for a wide range of piling and foundation applications and carriers. The final solution is always customised to meet customer-specific requirements. Additional tooling can be acquired at a later point in time.

MPL-400

MOVAX MPL-400 is a heavy-duty, multi-purpose piling leader designed for large size excavators. The MPL-400 is boom mounted and the tooling include vibratory pile drivers, impact type piling hammers and rotary drives for pre-augering and CFA.

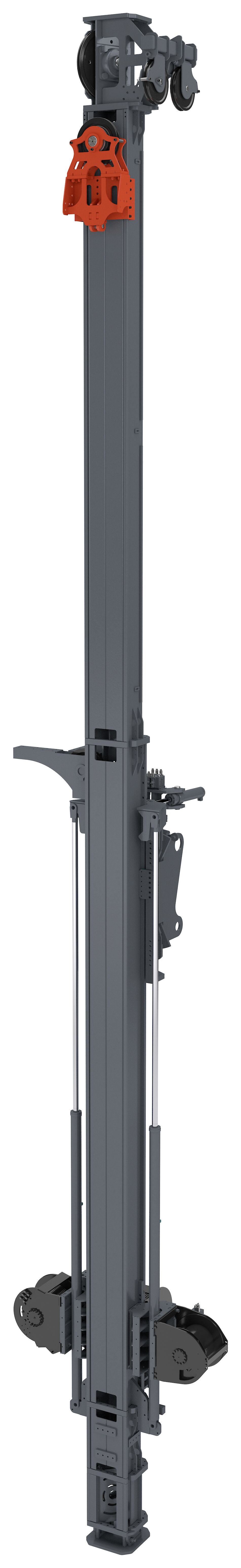

Leader MPL-400
Weight (without adapter & tool) kg 7000–8000
Height m 15
Forward inclination ° 20
Backward inclination ° 20
Tilt ° 8
Rotation (optional) ° 60
Winches
Main winch line pull kN 120
Aux winch line pull kN 57
Crowd system
Pull down force kN 120
Extraction force kN 120/360
Transport (w/o excavator)
Length mm 8700
Width mm 2900
Height mm 2900
Weight (w/o tool & adapter) kg 7000–8000
Excavator class* t 35–50

* Depending on tooling; additional counterweight might be required depending on excavator brand & model.

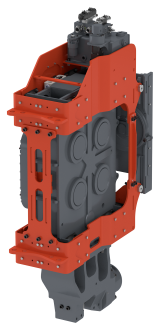

Vibratory pile driver TG-120 TG-160
Total weight (transport) kg 2460 2775
Total weight (operating) kg 2385 2700
Dynamic weight kg 1810 2100
Dynamic weight (excl. clamp) kg 1230 1280
Height mm 2500 2500
Depth mm 1330 1330
Width* mm 460/410 460/410
Eccentric moment kgm 13 16
Frequency 1/s 2300 2300
Line pull, max kN 200 200
Amplitude** mm 14,5/20 15,2 /25
Centrifugal force kN 718 912
Oil flow l/min 240 300
Operating pressure, max bar 350 350
Excavator class ton 35-50 42-50

Suitable piles
Sheet piles U and Z, max length 12 m
H-beams up to HEB500, max length 12 m
Tubular steel piles up to Ø 508 mm, 12 m
up to Ø 762 mm, 12 m

* also TG-160 can be mounted on the MPL-300 in case excavator hydraulic capacity is sufficient
** total/along piling line
*** with/without bottom clamp

Rotary drive PD-100
pre-auger
RHP-10
CFA
Total weight kg 1000 1800
Torque, max kNm 100 100
Drilling speed rpm 0-40 0-50
Connecting pin, hexagonal mm 130 NA
Oil flow l/mm 240 250
Maximum pressure bar 350 320
Pre-augering
Depth m 12 12
Hole diameter mm 300-800 300-800
CFA
Depth NA 12
Pile diameter NA 300

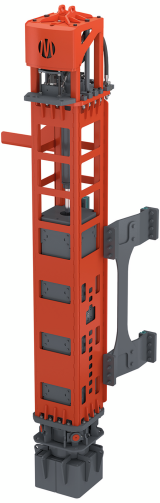

Piling hammer DH-35 DH-45
Total weight kg 4900 5850
Ram weight kg 3100 4000
Blows per minute 1/min 0-100 0-100
Impact energy kNm 0 0
Drop height mm 0-1,2 0-1,2
Total height mm 4460 4930
Frame width mm 650 650
Transport width mm 1200 1200
Transport depth mm 1870 1870
Oil flow l/min 80 80
Operating pressure bar 150 150
Pressure relief set, max bar 350 350

Download MPL-400 TECHNICAL SPECIFICATION

MPL-300

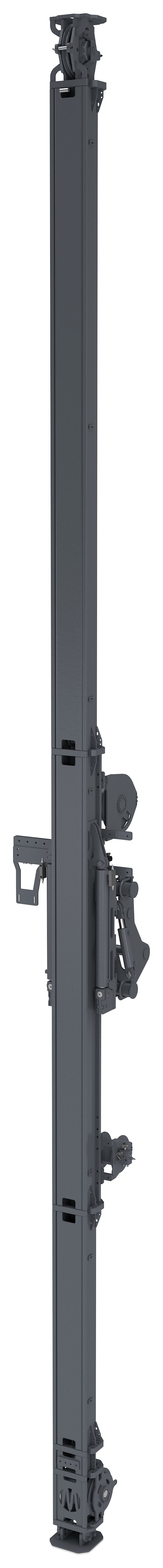

MOVAX MPL-300 is a multi-purpose piling leader designed for medium or large size excavators. The MPL-300 is either boom or stick mounted depending on the carrier and the tooling include vibratory pile drivers, impact type piling hammers and rotary drives for pre-augering and CFA.

Technical data MPL-300
Weight (without adapter & tool) kg 4000–4500
Height m 15
Forward inclination ° 20
Backward inclination ° 20
Tilt ° 8
Rotation (optional) ° 60
Winches
Main winch line pull kN 57
Aux winch line pull kN 25
Crowd system
Pull down force kN 57/114
Extraction force kN 57/171
Transport (w/o excavator)
Length mm 8600
Width mm 1800
Height mm 2000
Weight (w/o tool & adapter) kg 4 000–5 000
Excavator class* t 30–50

* Depending on tooling; additional counterweight might be required depending on excavator brand & model.

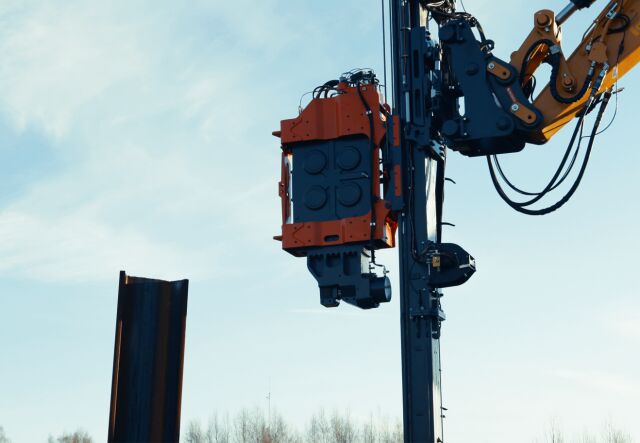

Vibratory pile driver TG-90 TG-120
Total weight (transport) 2400 2460
Total weight (operating) 2325 2385
Dynamic weight 1750 1810
Dynamic weight (excl. clamp) 1170 1230
Height 2500 2500
Depth 1330 1330
Width** 460/410 460/410
Eccentric moment 9.6 12.6
Frequency 2300 2300
Line pull, max 200 200
Amplitude*** 11,5/16 14,5/20
Centrifugal force 544 718
Oil flow 200 240
Operating pressure, max 350 350
Excavator class 30-45 35-50

Suitable piles
Sheet piles U and Z, max length 12 m
H-beams up to HEB500, max length 12 m
Tubular steel piles up to Ø 508 mm, 12 m
up to Ø 762 mm, 8 m

* also TG-160 can be mounted on the MPL-300 in case excavator hydraulic capacity is sufficient
** total/along piling line
*** with/without bottom clamp

Rotary drive, pre-auger PD-50
pre-auger
RHP-5
CFA
Total weight kg 600 1400
Torque, max kNm 50 50
Drilling speed rpm 0 0
Connecting pin, hexagonal mm 70 NA
Oil flow l/mm 240 250
Maximum pressure bar 350 320
Pre-augering
Depth m 12 12
Hole diameter mm 300 300
CFA
Depth m 12
Hole diameter mm 300

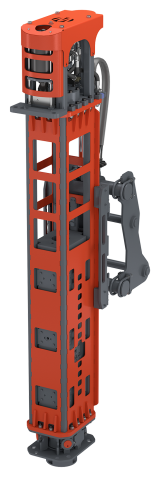

Piling hammer DH-15 DH-25
Total weight kg 2800 3700
Ram weight kg 1360 2060
Blows per minute 1/min 0-100 0-100
Impact energy kNm 0 0
Drop height mm 0-1,2 0-1,2
Total height mm 3850 4460
Frame width mm 500 500
Transport width mm 1200 1200
Transport depth mm 1870 1870
Oil flow l/min 80 80
Operating pressure bar 150 150
Pressure relief set, max bar 350 350

Suitable piles
Sheet piles U and Z, max length 12 m
H-beams up to HEB500, max length 12 m
Tubular steel piles up to Ø 508 mm, 12 m
up to Ø 762 mm, 8 m
Precast concrete up to 250 x 250 mm, max length 12 m

Model GEONEX GR15 GEONEX GR50
Max casing diameter mm 323.9 610
Weight kg
Lenght mm 363 520
Width mm
Height mm 370 615
Thread connection
Max oil flow l/min 270 300
Max oil pressure bar 250 250
Max torque, slow gear kNm min 7,5 / max 15 min 14 / max 55
Max torque, fast gear kNm min 5 / max 10 min 9,3 / max 37,5
Max rotation speed, slow gear rpm min 60 / max 30 min 57 / max 14
Max rotation speed, fast gear rpm

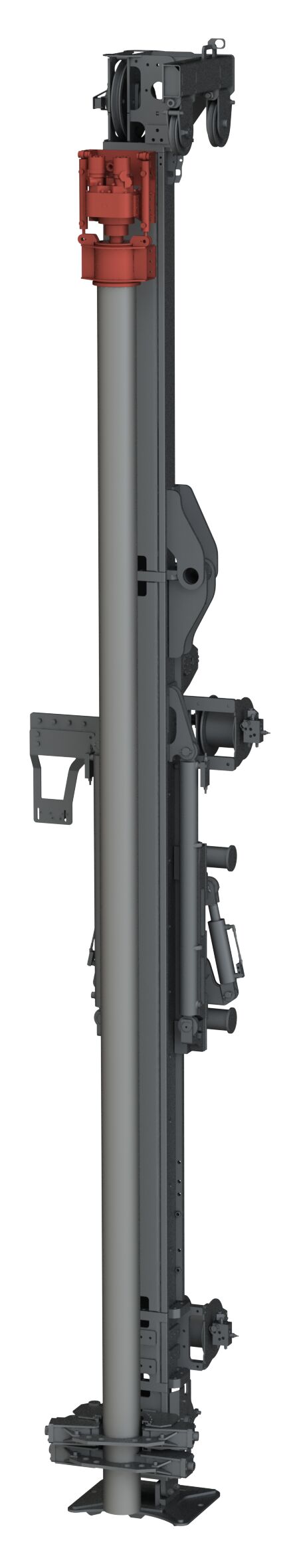

Suitable DTHs (Down-the-Hole-Hammers)
Casing outer diameter DTH size DTH size
139.7 mm 4” 4”
168.3 mm 5” 5”
219.1 mm 6”/7” 6”/7”
273 mm 8” 8”
323.9 mm 10" 10”
406.4 mm NA 12”
508 mm NA 15”
610 mm NA 18”

Download MPL-300 TECHNICAL SPECIFICATION

MPL-200

MOVAX MPL-200 is a micropiling leader designed for small or medium size excavators. The MPL-300 is either boom or stick mounted depending on the carrier and the tooling include vibratory pile drivers, hydraulic hammers and rotary drives for pre-augering.

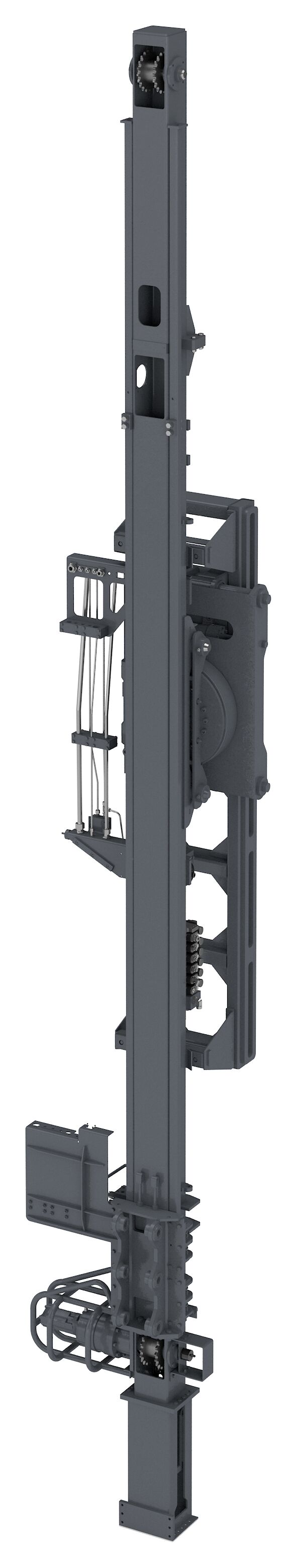

Leader MPL-200
Weight (without adapter & tool) kg 1800
Height m 7.8
Excavator class t 8–30

Viratory pile driver TG-15
Frequency Hz 50
Eccentric moment kgm 1.6
Centrifugal force, max kN 150
Excavator class, min t
Chassis mounted* 8
Boom mounted 16
Stick mounted 23
Suitable piles
Sheet piles size U and Z piles / 6 m
H-beams size up to H200 / 6 m
Tubular piles size up to Ø 220 mm / 6 m

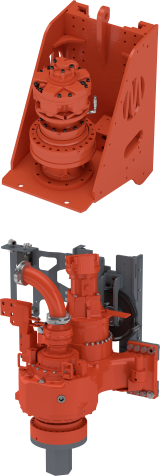

Rotary drive, pre-augering PD-6
Rotation speed rpm 20-43
Torque kNm 12
Excavator class t
Chassis mounted* 8
Boom mounted 16
Stick mounted 23

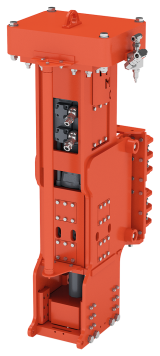

Hydraulic hammer IH-1200 IH-2500 IH-3400
Blows per minute 1/min 570-1180 460-940 400-870
Energy Nm 1200 2500 3400
Excavator class , min t
Chassis mounted* 8 16 18
Boom mounted 16 20 20
Stick mounted 23 26 30

Sheet piles size U and Z piles / 6 m
H-beams size up to H200 / 6 m
Tubular piles size up to Ø 220 mm / 6 m

Download MPL-200 TECHNICAL SPECIFICATION
