COLUMN STABILISATION LEADERS

MOVAX excavator-mounted stabilisation leader provides a versatile solution for column stabilisation utilising both dry and wet binder material. MOVAX column stabilisation leader and its tooling are designed to work on a standard excavator with normal auxiliary hydraulics and are controlled with the MOVAX Control System.

MOVAX column stabilisation leaders are based on a modular concept and always customised to meet customer-specific requirements.

FEATURES

EXCAVATOR MOUNTED

Utilizing the hydraulic power and lifting capacity of the excavator. Designed to work on any and all excavators by using and commanding the standard auxiliary hydraulics and/or by connecting to the electronic control of the excavator while maintaining all the original functionality of the excavator.

NOTE! the selection and suitability of a specific excavator must always be checked by MOVAX Oy

Available for both dry and wet binder material and for various mixing depths based on customer requirements and size of excavator. Scalable to different mixing depths by removable sections; and for different column diameters. Depending on the size of the excavator either stick- or boom mounted.

MSL

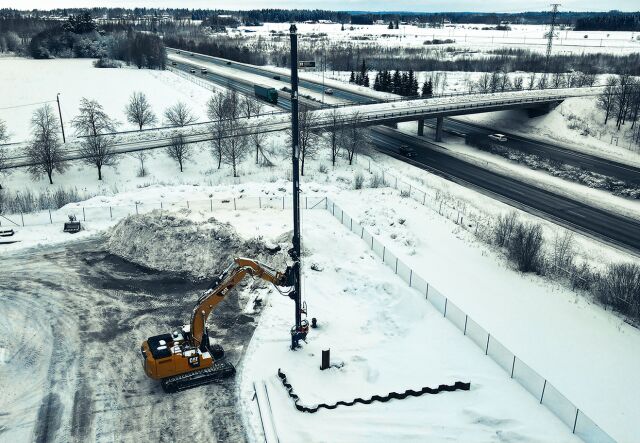

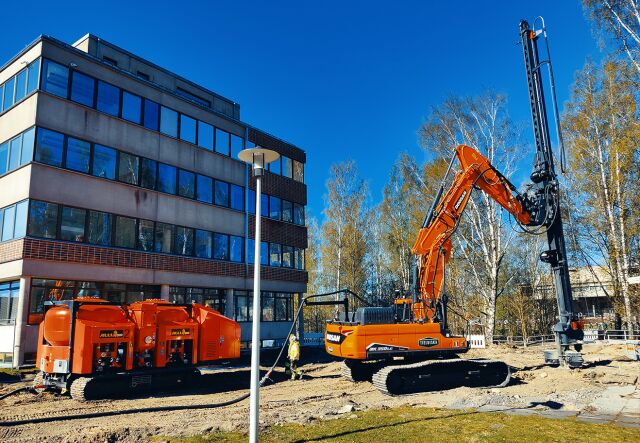

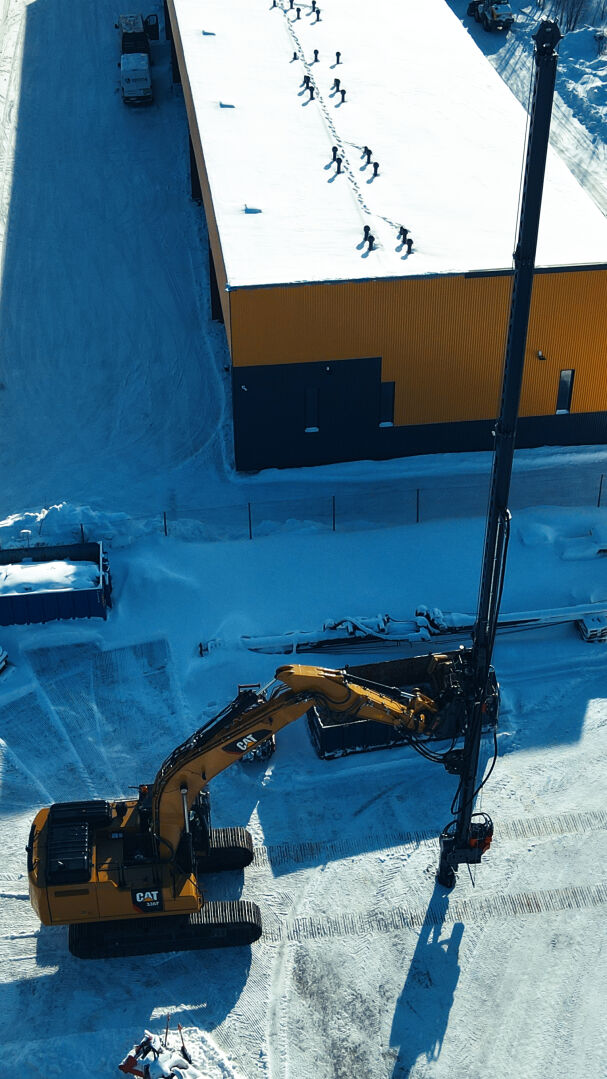

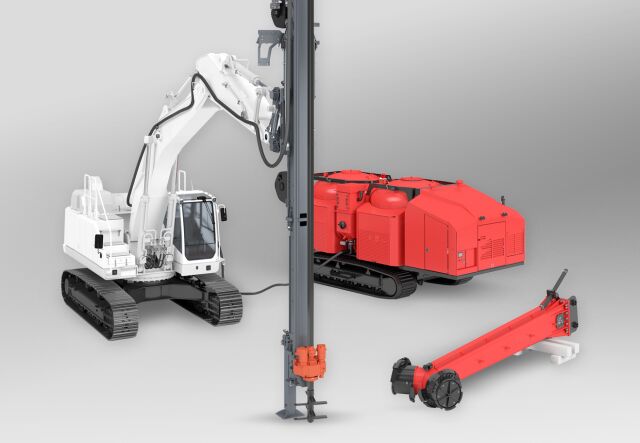

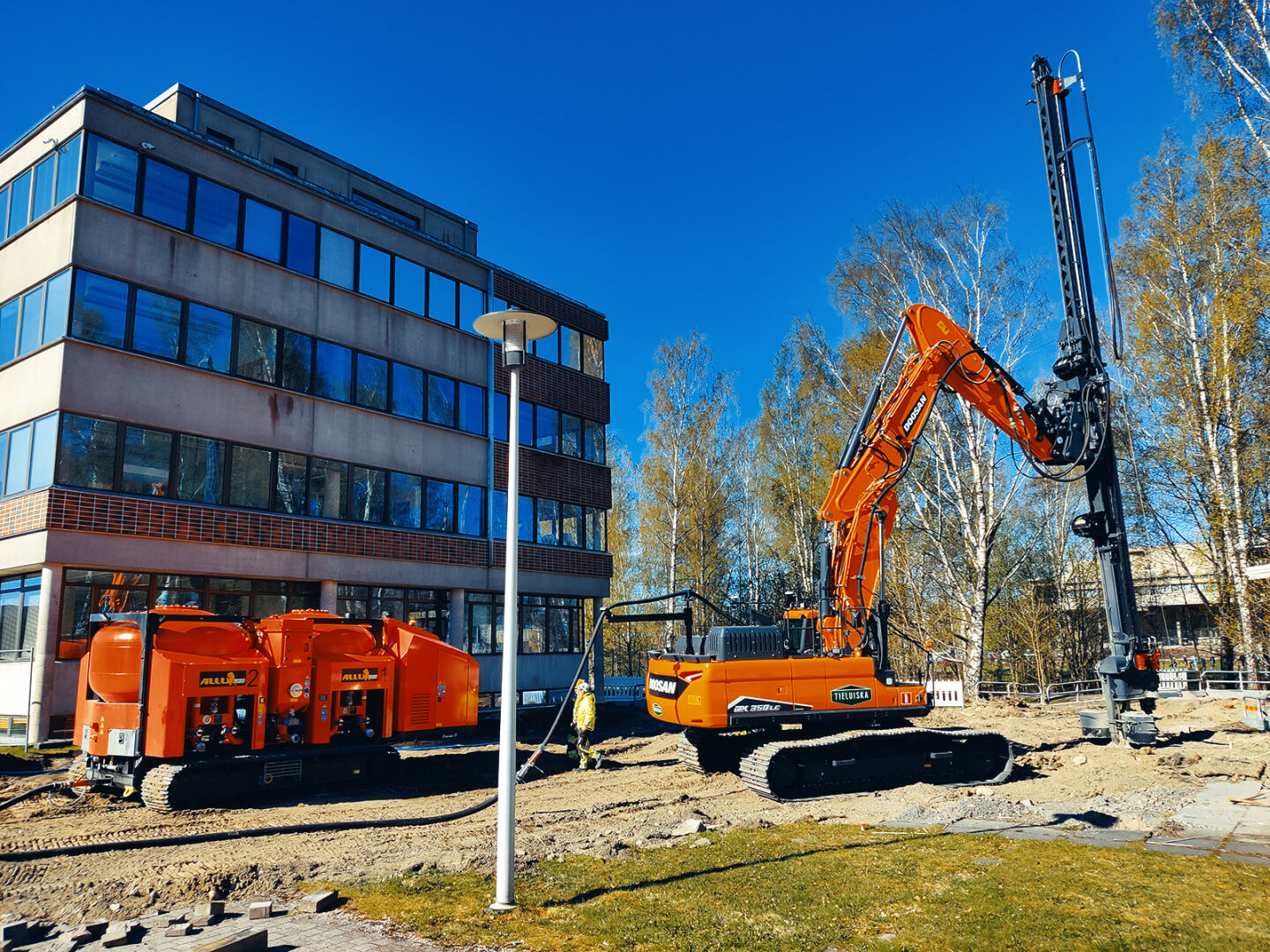

Together wih ALLU, MOVAX provides a total, excavator mounted solution for mass and column stabilisation. The solution includes the mechanical equipment for the storage and feed of the binder, the mixing of the binder into the soil in question and the fully integrated control and information management (3D/reporting) systems.

MOVAX + ALLU

MODULAR SYSTEM

MOVAX Column stabilisation leaders are based on the same modular concept and design as the MOVAX Multi-tool piling leaders. Modular design enables fast-and-easy customisation to meet customer specific technical requirements and also enables fast spare parts deliveries.

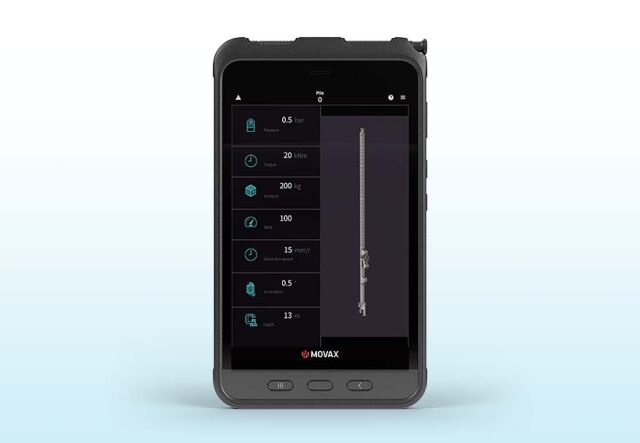

Superior control and monitoring of the stablisation work  due to the state-of-the art MOVAX Control System which leads to the highest possible efficiency, precision and accuracy. The MOVAX Column stabilisation leader and its tooling is controlled with the same control system as all other MOVAX piling equipment: mControl+ PRO.

mControl+ PRO

Available with the MOVAX MIMS Information Managament System: mFleetManagement for monitoring MOVAX Column stabilisation leader and tooling operation, performance and condition; and mLogbook for monitoring and reporting the stabilisation work; for both MOVAX column stabilisation and ALLU mass stabilisation.

MIMS™

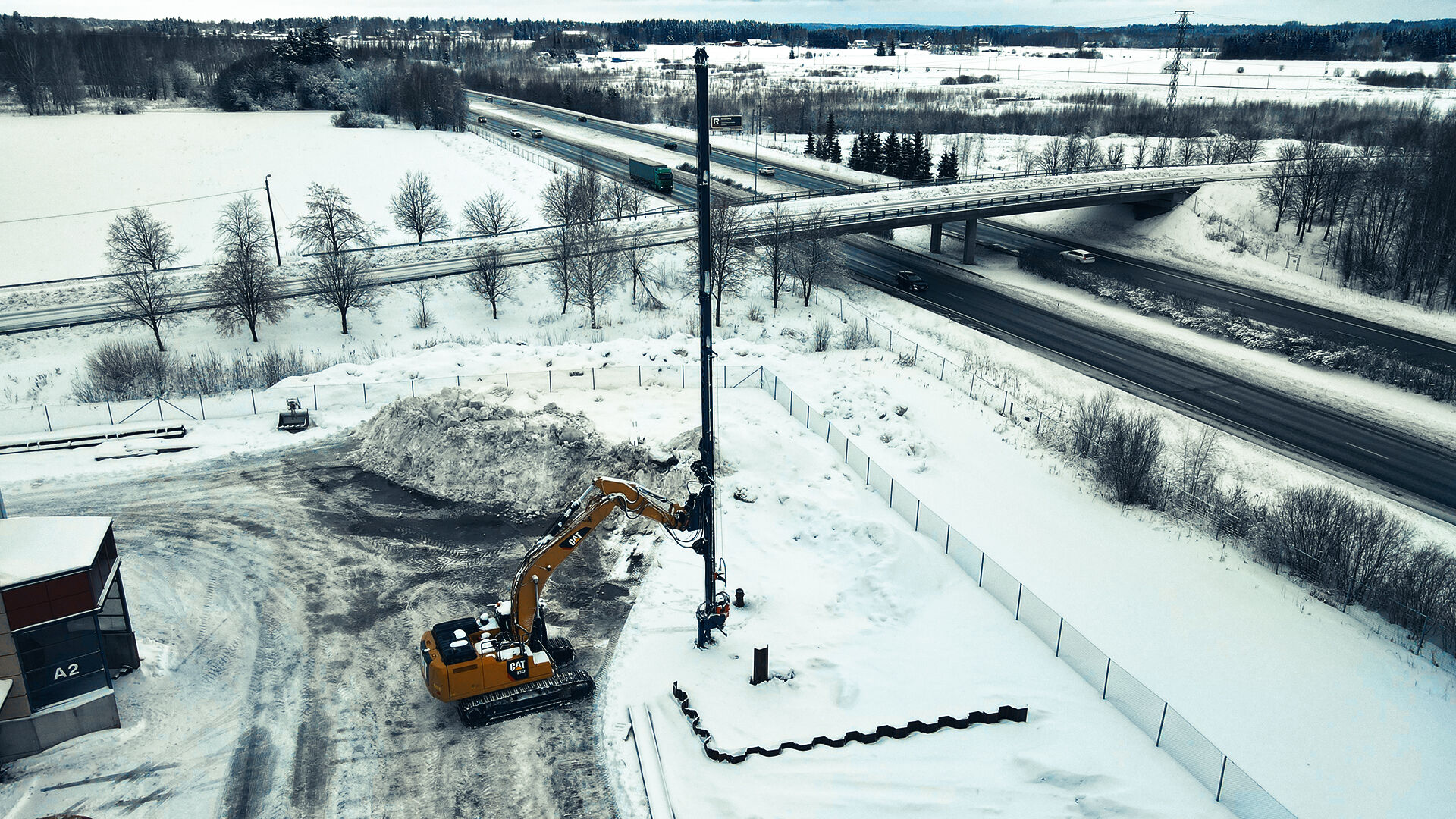

Download MSL Reference Pictures



TECHNICAL DATA

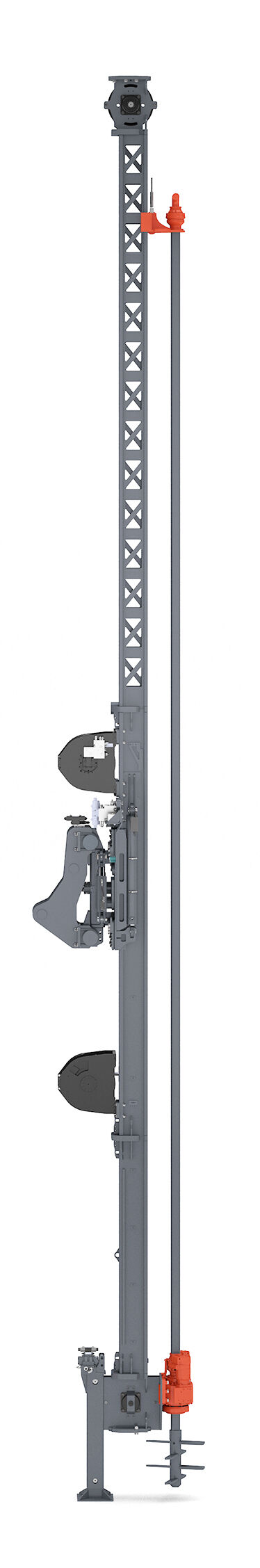

MSL-300

MOVAX excavator-mounted stabilisation leader provides a versatile solution for column stabilisation utilising both dry and wet binder material.

Model MSL-300
Column depth m 20
Column diameter mm 500-800
Weight (w/o adapter) kg 6500
Height m 23
Tilt angle ° +/- 8
Winches
· number pcs 2
· pull down/extraction force kN 57/57
· speed m/min 0-30

NOTE! depending on carrier 22-25 m depth possible

Rotary drive
Torque kNm 20
Rotational speed mm 180–200
Features/instrumentation

· rotation speed
· rotation torque
· column depth/ascent rate
· driving angle

Mixer/mixer tip
Mixer tip levels pcs 4
Diameter mm 500-800, nominal
Binder feed kg/s 3
Compressed air, pressure bar 10
Compressed air, flow rate m3/min 6.5
Ascent rate mm/r 20
Rotational velocity rpm 180–200
Injection pipe
length m 21.3
Inner diameter mm 34
Support pipe
length m 21.3
size / wall thickness mm 100 x 100 mm square/8 mm

Download MSL-300 TECHNICAL SPECIFICATION
